棘輪套筒扳手由不同尺寸的梅花主套筒與梅花套筒通過鉸接鑰匙的內、外鍵連接。因為球桿套筒在球桿的形狀上有兩個通孔。
The ratchet sleeve wrench is connected by the main sleeve of plum blossom of different sizes and the plum blossom sleeve through the internal and external keys of the hinge key. Because there are two through holes in the shape of the club sleeve.
1. 可調扳手可輕松調整扳手角度。該扳手用于螺釘?shù)木o固作業，具有適用性強、使用方便、成本低等特點。
1. The adjustable wrench can easily adjust the angle of the wrench. The wrench is used for fastening screw, and has the characteristics of strong applicability, convenient use and low cost.

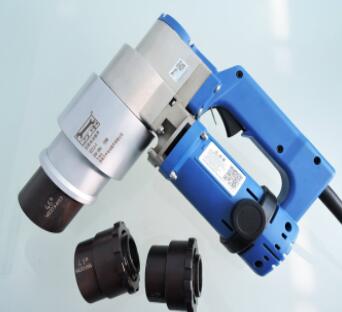

電動扭矩扳手
Electric Torque Spanner
2.扭矩扳手——也稱為扭力扳手或力矩扳手,力矩是力和距離的產物,當收緊螺絲,螺栓、螺母螺紋緊固件和其它需要控制的轉矩應用確保線程緊張而不是太多的扭矩銷毀線程,所以扭矩扳手操作。，設置所需扭矩值的上限。當施加的扭矩達到設定值時，扳手會發出“卡塔”的聲音，或者扳手接頭發生輕微彎曲，說明扭矩已經擰緊，不再增加力。不同的是扭矩扳手的扭矩可以設定。扭矩扳手(扭矩扳手)的原理產生“扭矩”的聲音很簡單，可以分為以下幾個步驟來理解:
2. Torque wrench, also known as torque wrench or torque wrench, torque is the product of force and distance. When tightening screw, bolt, nut thread fastener and other torque applications need to be controlled to ensure thread tension rather than too much torque to destroy threads, so the torque wrench operation. First, set the upper limit of the required torque value. When the applied torque reaches the set value, the wrench will emit a "kata" sound, or the wrench joint will be slightly bent, indicating that the torque has been tightened, no additional force. The difference is that the torque of the torque wrench can be set. Torque wrench (Torque wrench) principle produces "Torque" sound very simple, can be divided into the following steps to understand:
3.扭矩扳手發出的“卡塔”由其內部的扭矩釋放機構產生，該機構由壓力彈簧、扭矩釋放關節和扭矩砧三種結構組成。
3. The "cartridge" emitted by the torque wrench is generated by its internal torque release mechanism, which consists of three structures: pressure spring, torque release joint and torque anvil.
電動扭矩扳手
Electric Torque Spanner
4. 在扭矩扳手上設置所需扭矩值(在推桿上設置彈簧，按下扭矩釋放接頭)，鎖緊扭矩扳手，開始擰緊螺栓。當螺栓達到扭矩(施加的扭矩大于彈簧壓力)時，會發生瞬間斷開。在斷開作用的瞬間，扳手的金屬外殼發出“kata”的聲音。這證實了達到扭矩值的警惕性(就像我們的手臂關節在鐵管中彎曲15度，然后立即伸直并接觸鋼管一樣)。
4. Firstly, set the required torque value on the torque wrench (set the spring on the push rod, press the torque release joint), lock the torque wrench, and start tightening the bolt. When the bolt reaches the torque (the applied torque is greater than the spring pressure), it will break instantaneously. At the moment of disconnection, the metal casing of the wrench makes a "kata" sound. This confirms the vigilance to reach the torque value (just as our arm joints bend 15 degrees in the pipe and then straighten out and touch the pipe immediately).
說的是常用的手動扭矩扳手，除了電動扭矩扳手、氣動扭矩扳手等。
Said is the most commonly used manual torque wrench, in addition to electric torque wrench, pneumatic torque wrench, etc.
結構扭矩扳手又稱扭矩表、扭矩螺絲刀。它是根據梁的彎曲原理、扭桿的彎曲原理和螺旋彈簧的壓縮原理設計的，可以測量螺母上的扭矩。
Structural torque wrench is also called torque meter and torque screwdriver. It is designed according to the bending principle of the beam, the bending principle of the torsion bar and the compression principle of the coil spring. It can measure the torque on the nut.
扭力扳手有板式和刻度盤式兩種。扭矩扳手有一根長彈性桿，一端有手柄，另一端有一個方形或六角形的頭。可互換的套筒設置在方形或六角形的頭部，并用鋼球固定。它的頂部也有一個長指針。刻度板固定在手柄底座上，刻度值為每格1N(或kg/m)。使用前，先將安裝在扳手上的指示器調整到所需扭矩，然后再拉動扳手。當達到預定扭矩時，指示器上的指針將向銷軸旋轉。后，指針與銷軸發生碰撞，通過音箱信號或傳感器信號通知操作者。
There are two types of torsion wrench: plate type and dial type. The torque wrench has a long elastic rod with a handle at one end and a square or hexagonal head at the other end. The interchangeable sleeve is arranged at the head of a square or hexagonal shape and fixed with a steel ball. It also has a long pointer at the top. The scale plate is fixed on the base of the handle, and the scale value is 1N (or kg/m) per grid. Before using, adjust the indicator installed on the wrench to the required torque, and then pull the wrench. When the predetermined torque is reached, the needle on the indicator will rotate to the pin shaft. Finally, the pointer collides with the pin shaft, and the operator is informed by the speaker signal or sensor signal.
以上是
電動扭矩扳手廠家為大家整理的相關內容，想要了解更多內容，歡迎訪問網站：http://m.bjqunyao.com
These are the related contents of the electric torque wrench manufacturer for you. For more information, please visit the website: http://m.bjqunyao.com.
