如今開始嘗試應用一些新的方法來進行高強螺栓軸力的檢測，以保證安裝的質量，下面簡述三種新的檢測方法。
Now we are trying to apply some new methods to detect the axial force of high-strength bolts to ensure the quality of installation. Here are three new detection methods.
一、標定法
1、 Calibration method

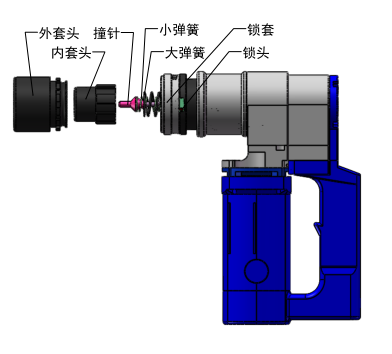

1、現通常所說的拉力標定器就是軸力計。為了保證高強度螺栓連接副的安裝質量，在安裝現場用于檢測軸力的移動式軸力計，由輪輻式壓力傳感器和與之配套的數字顯示儀表組成。2、移動式軸力計主要適用于安裝現場，通過與現場施工的力矩施加工具進行施擰后的預緊力對比，以便及時修正現場施擰扭矩。通過移動式的軸力計對現場施擰工具的標定校驗，為現場施工質量提供了一定的質量保障。
1. Now commonly referred to as the tension calibrator is the axial force meter. In order to ensure the installation quality of the high-strength bolt connection pair, the mobile axial force meter used to detect the axial force at the installation site is composed of a spoke pressure sensor and a supporting digital display instrument. 2. The mobile axial force meter is mainly applicable to the installation site. By comparing the pre tightening force after screwing with the torque application tool in the field construction, the on-site screwing torque can be corrected in time. The calibration and verification of the on-site screwing tools by the mobile axial force meter provides a certain quality guarantee for the on-site construction quality.
二、應變法
2、 Strain method
1、將應變片貼在被測定物上，使其隨著被測定物的應變一起伸縮，這樣里面的金屬箔材就隨著應變伸長或縮短。很多金屬在機械性地伸長或縮短時電阻會隨之變化。應變片就是應用這個原理，通過測量電阻的變化而對應變進行測定。
1. Stick the strain gauge on the measured object and make it stretch and contract with the strain of the measured object, so that the metal foil inside will stretch or shorten with the strain. The resistance of many metals will change as they mechanically lengthen or shorten. The strain gauge applies this principle to measure the strain by measuring the change of resistance.
2、應變法是利用應變片組成惠斯通電橋的工作原理，然后對其進行封裝，形成螺栓軸力傳感器裝置，然后將傳感器安裝在螺栓和被連接件的中間，在螺栓和傳感器中間放置墊片使傳感器受力均勻。由于傳感器受到螺栓預緊力的壓擠作用，使得傳感器內部的應變片發生變化，而產生位移應變。通過上述原理法來測得應變，再由應變和應力之間的關系從而計算出預緊力。
2. Strain method is to use the strain gauge to form the working principle of Wheatstone bridge, and then package it to form a bolt axial force sensor device, and then install the sensor in the middle of the bolt and the connected part, and place a gasket between the bolt and the sensor to make the sensor bear the force evenly. Because the sensor is compressed by the bolt preload, the strain gauge inside the sensor changes, resulting in displacement strain. The strain is measured by the above principle method, and then the preload is calculated from the relationship between strain and stress.
三、超聲波測量法
3、 Ultrasonic measurement method
1、人們?cè)诶碚撋蠈?duì)聲波與應力關系進行研究探索多年，進入21世紀，市場上已有了螺栓應力超聲測量儀。由于超聲波應力測量方法可直接測量，且精度高，測量簡便，尤其是可以在役狀態的螺栓進行定期跟蹤檢測，所以發展較快。
1. People have studied and explored the relationship between sound wave and stress in theory for many years. In the 21st century, there are bolt stress ultrasonic measuring instruments on the market. Because the ultrasonic stress measurement method can be measured directly, with high accuracy and simple measurement, especially the bolts in service can be tracked and tested regularly, so it develops rapidly.
2、超聲應力檢測法的計算原理，測量有應力狀態下和無應力狀態下超聲波傳導來回需要的聲時；再用扭矩機、拉伸機分別與超聲應力儀對比，量儀得出的結果很好，誤差非常小。
2. The calculation principle of ultrasonic stress detection method is to first measure the sound time required for ultrasonic transmission back and forth in stressed and unstressed states; Then the torque machine and the stretching machine are compared with the ultrasonic stress meter respectively. The result of the meter is very good and the error is very small.
3、超聲波應力測量儀可以進行螺栓安裝過程中的檢測和對現行服役螺栓軸力的檢測、螺栓在役檢測，可以隨時監測機件運行的螺栓預緊力，起到保護裝備或車輛運行的重要作用。
3. The ultrasonic stress measuring instrument can detect the bolt installation process, the axial force of the bolts in service, and the bolt in service. It can monitor the bolt preload of the running parts at any time, and plays an important role in protecting the safe operation of equipment or vehicles.
